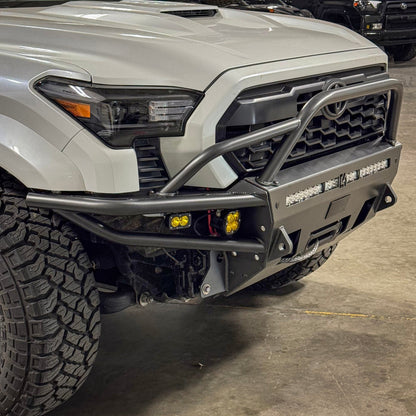

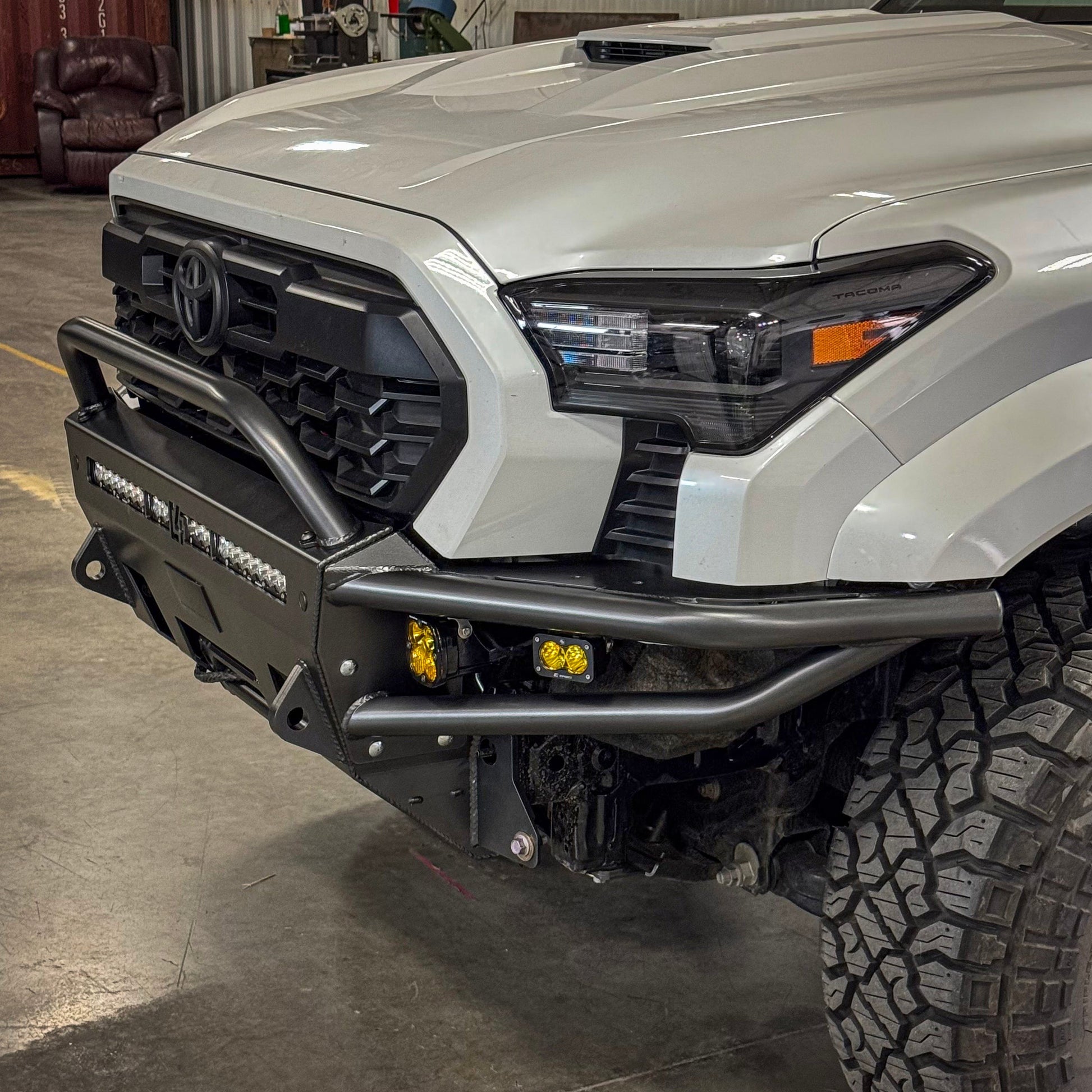

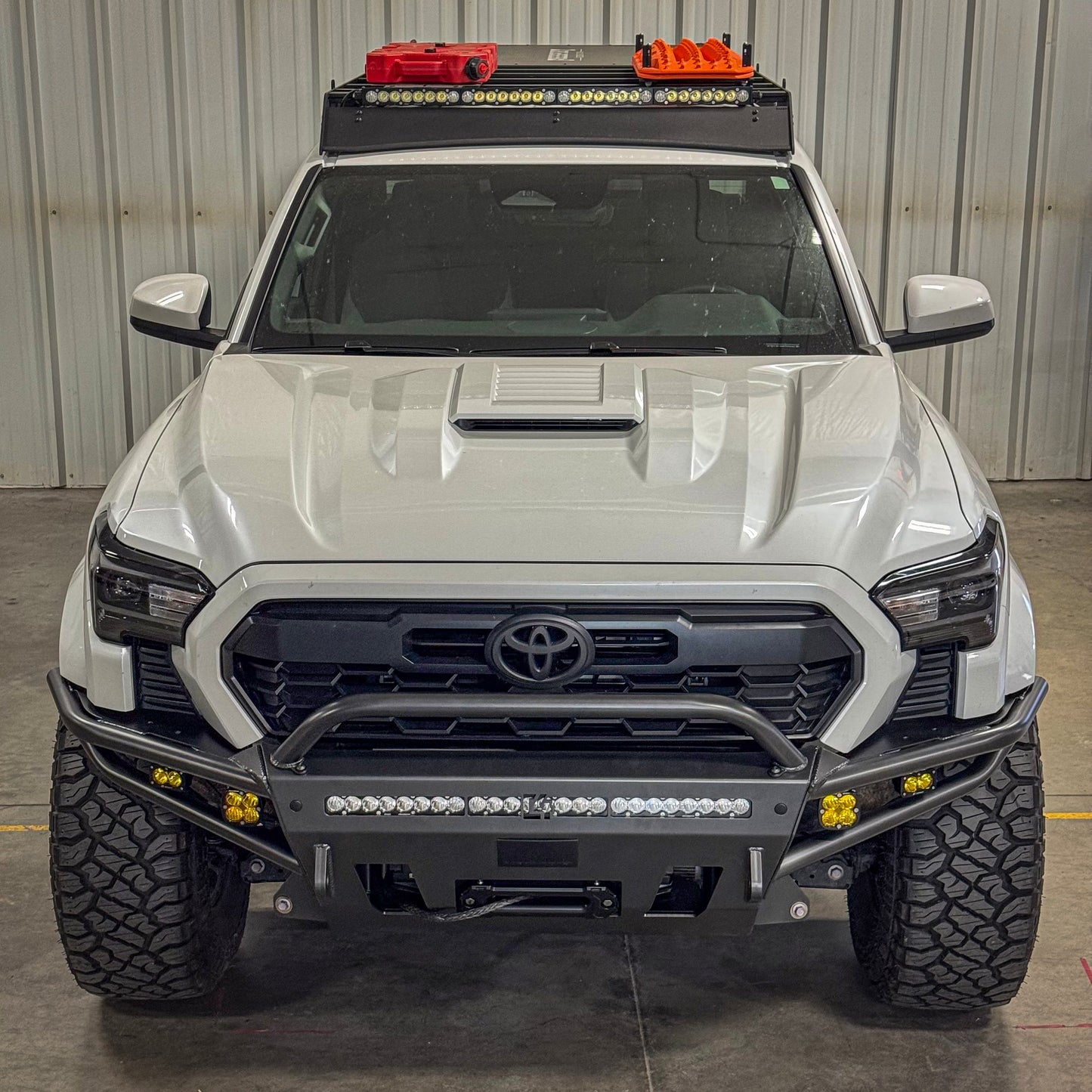

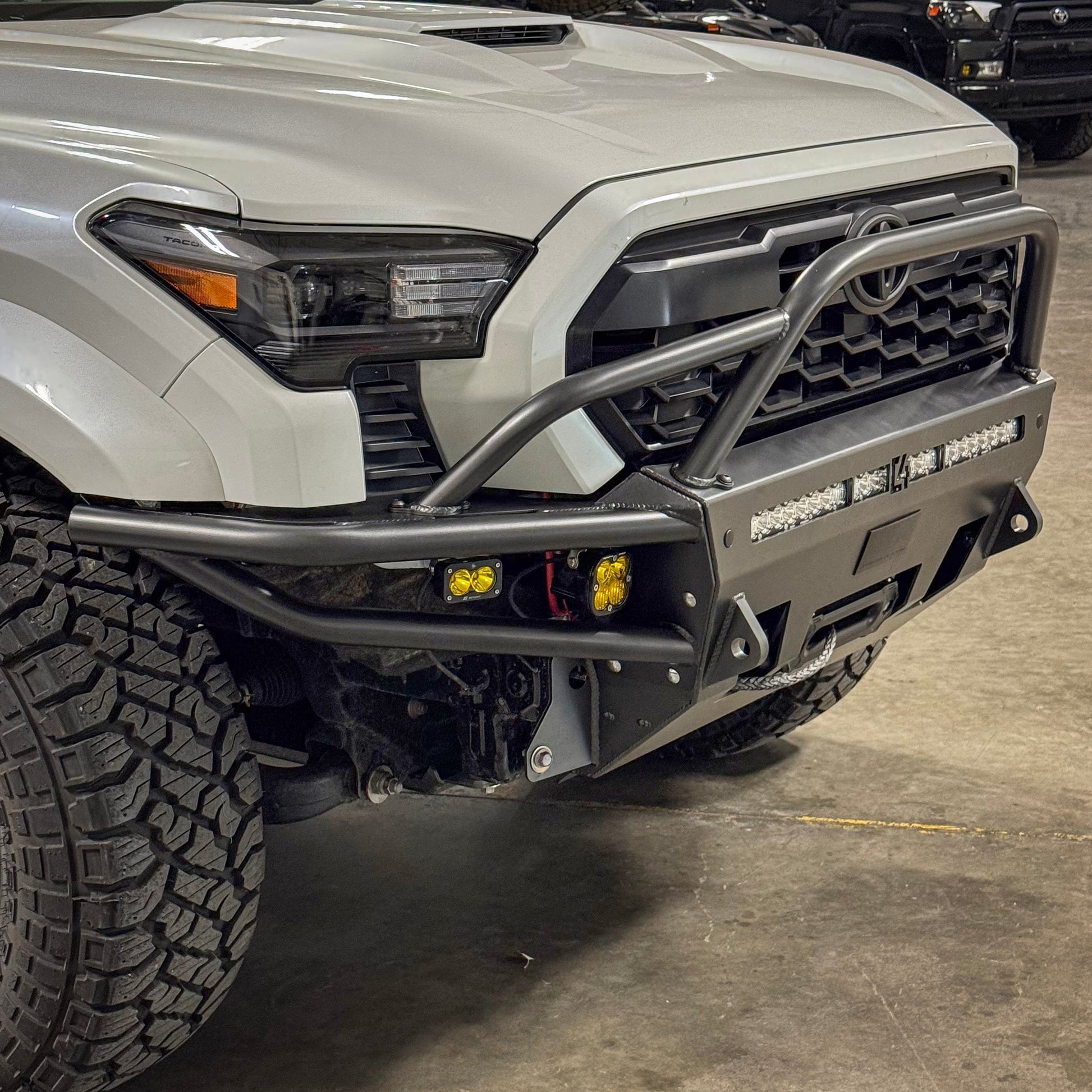

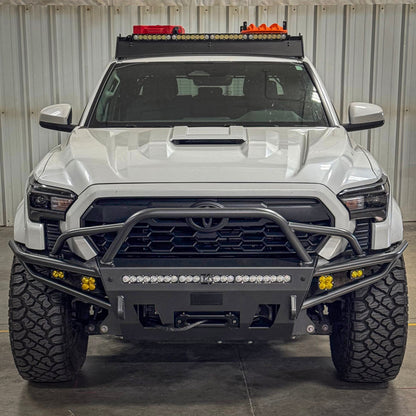

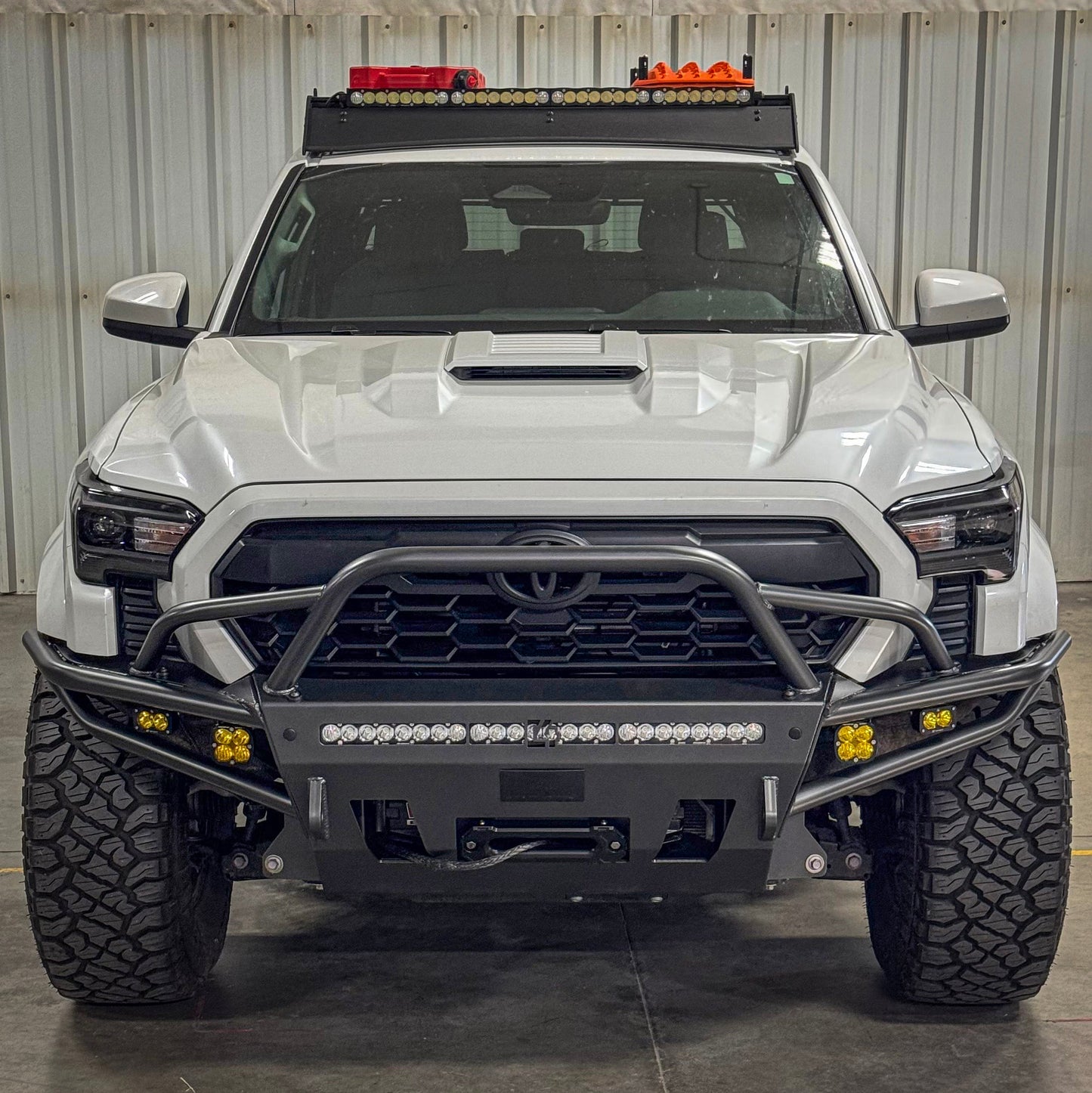

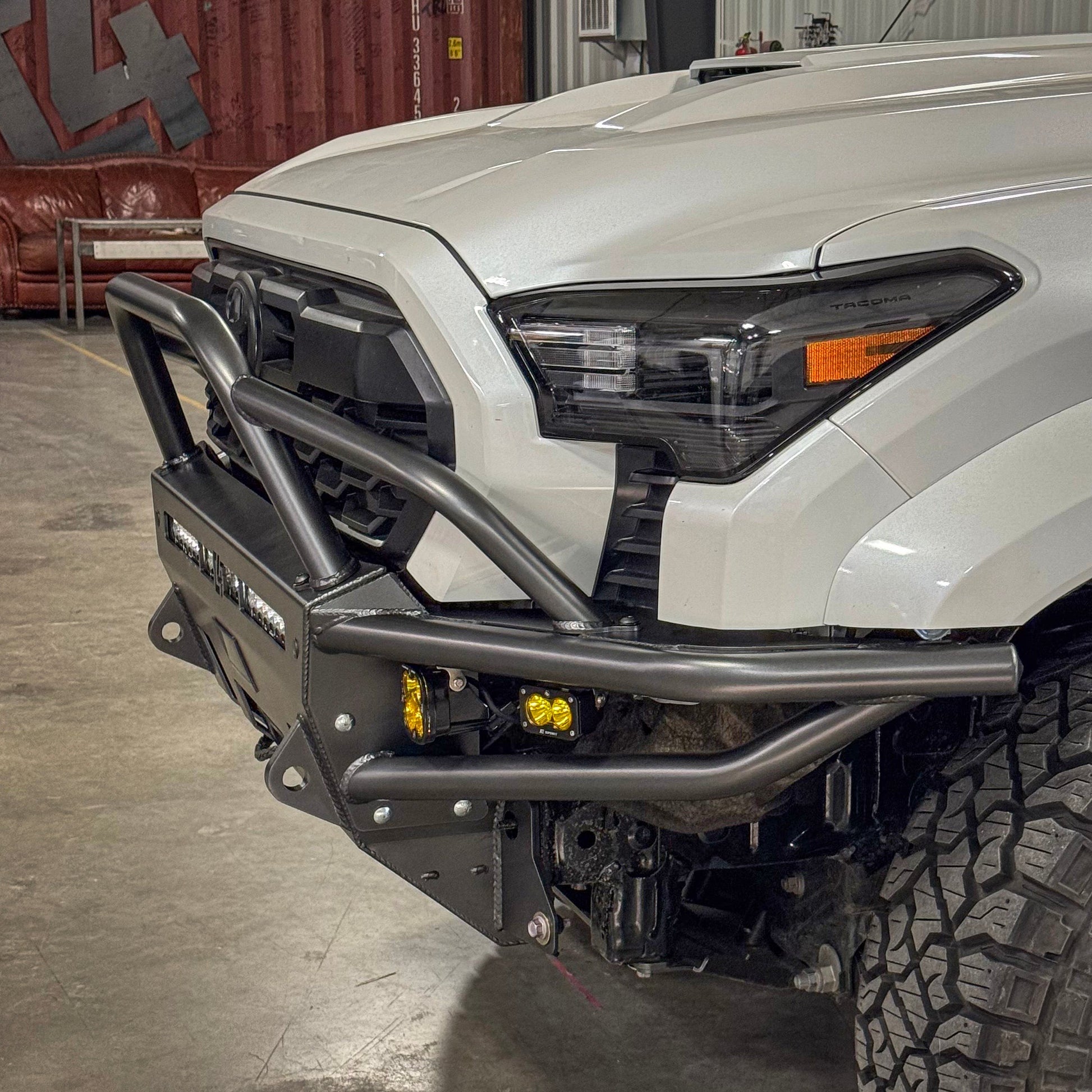

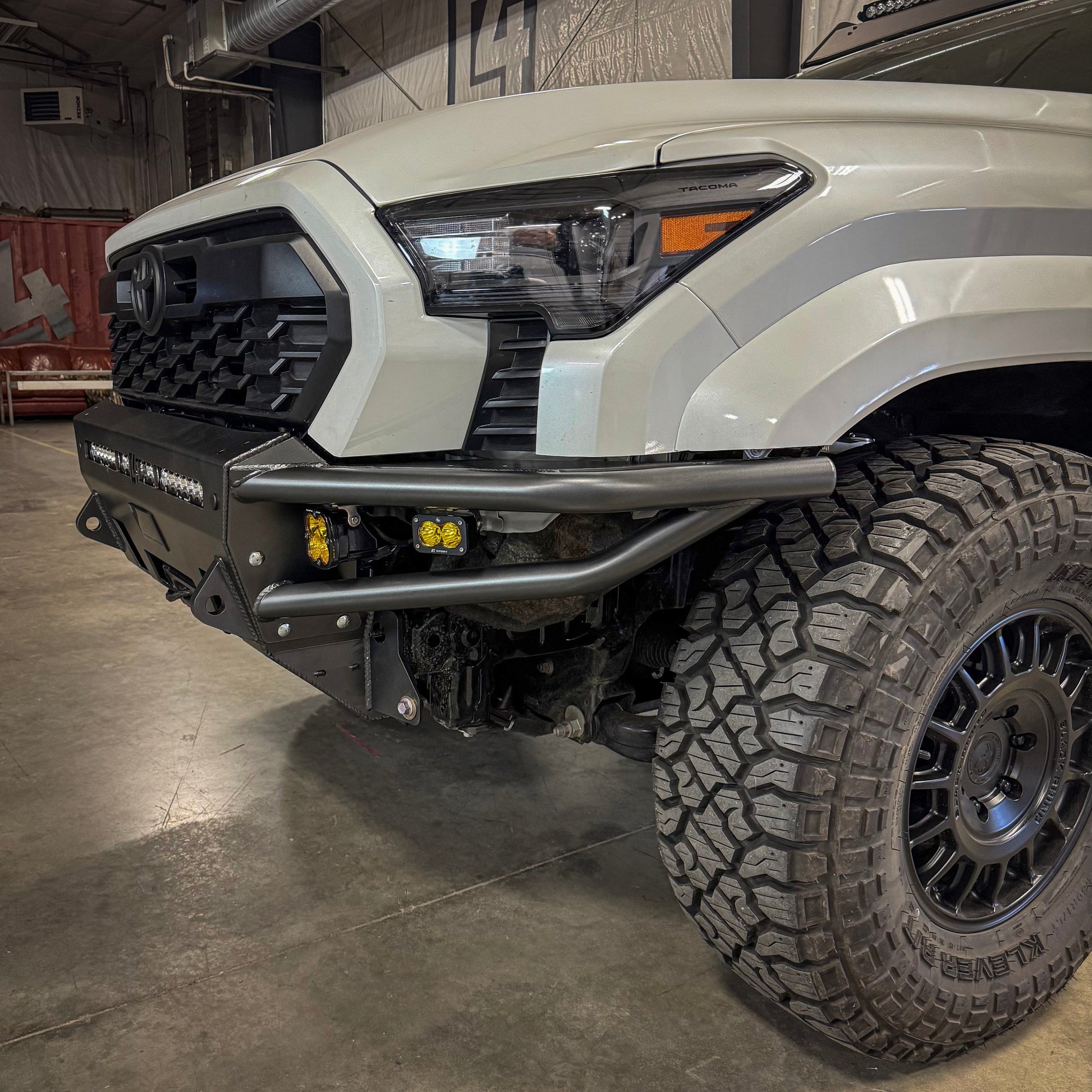

2024+ Tacoma (4th Gen) Hybrid Front Bumper

• • Requires cutting of the plastic bumper to install.
  • Fits most winches 8k-12k in size. Electrical control box must be relocated from top of winch and trimming/fitting will be required (Warn VR series is a confirmed fit).
  • We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
  • Cutouts in front of bumper allow winch lever access.
  • Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8, Heretic Studio 30" and Rigid SR-30 light bars).
  • Up to 4 Baja Designs Squadron lights and two Baja Designs S2 lights can be mounted in the bumper as well as a 30″ single row light bar.
  • Bumper main body is 3/16″ thick steel.
  • Tubing is all 1 3/4″ OD, 1/8″ wall thickness, except for mid-height bull bar gussets, which are 1 1/2" OD.
  • 3/4″ thick D-ring tabs fully welded front and back come standard.

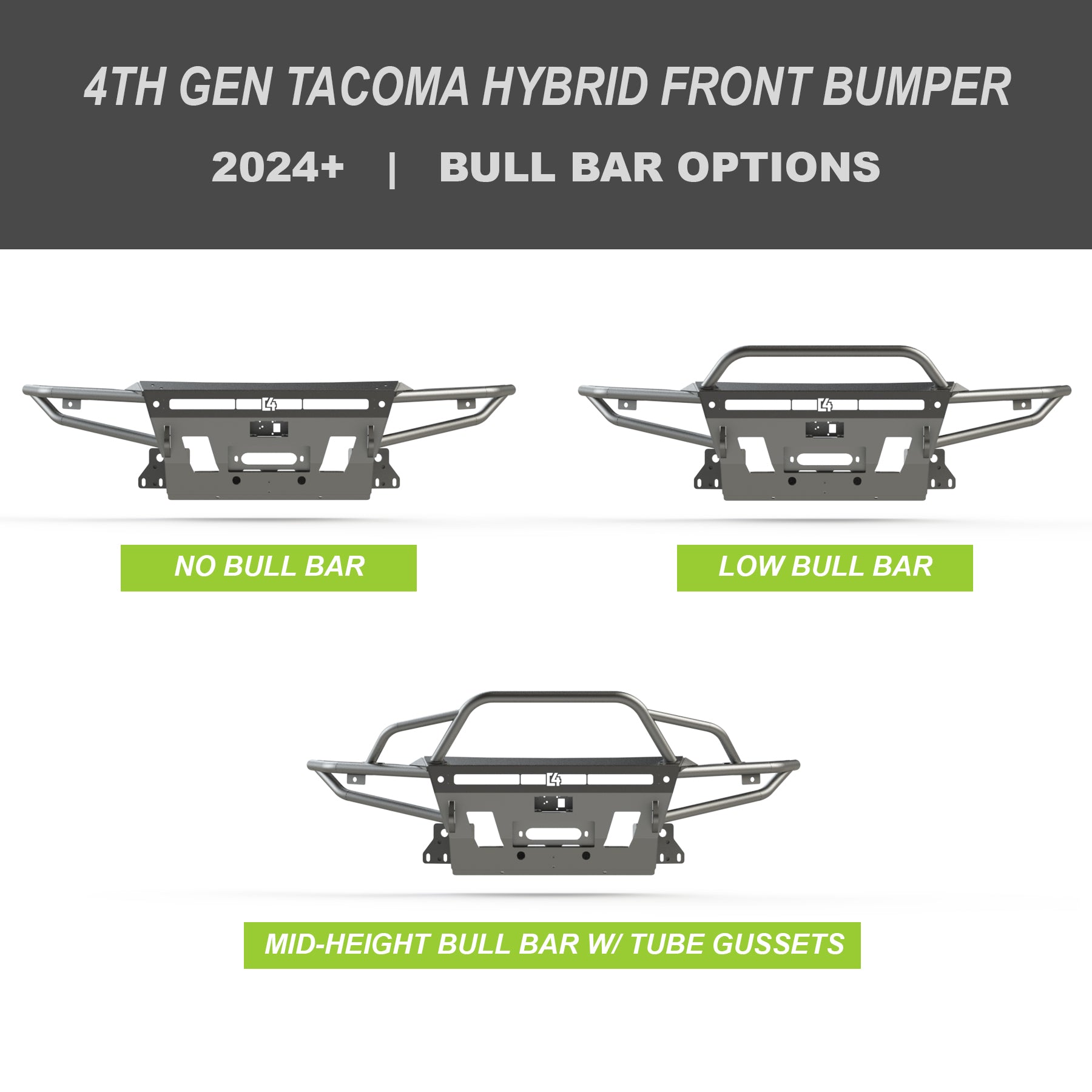

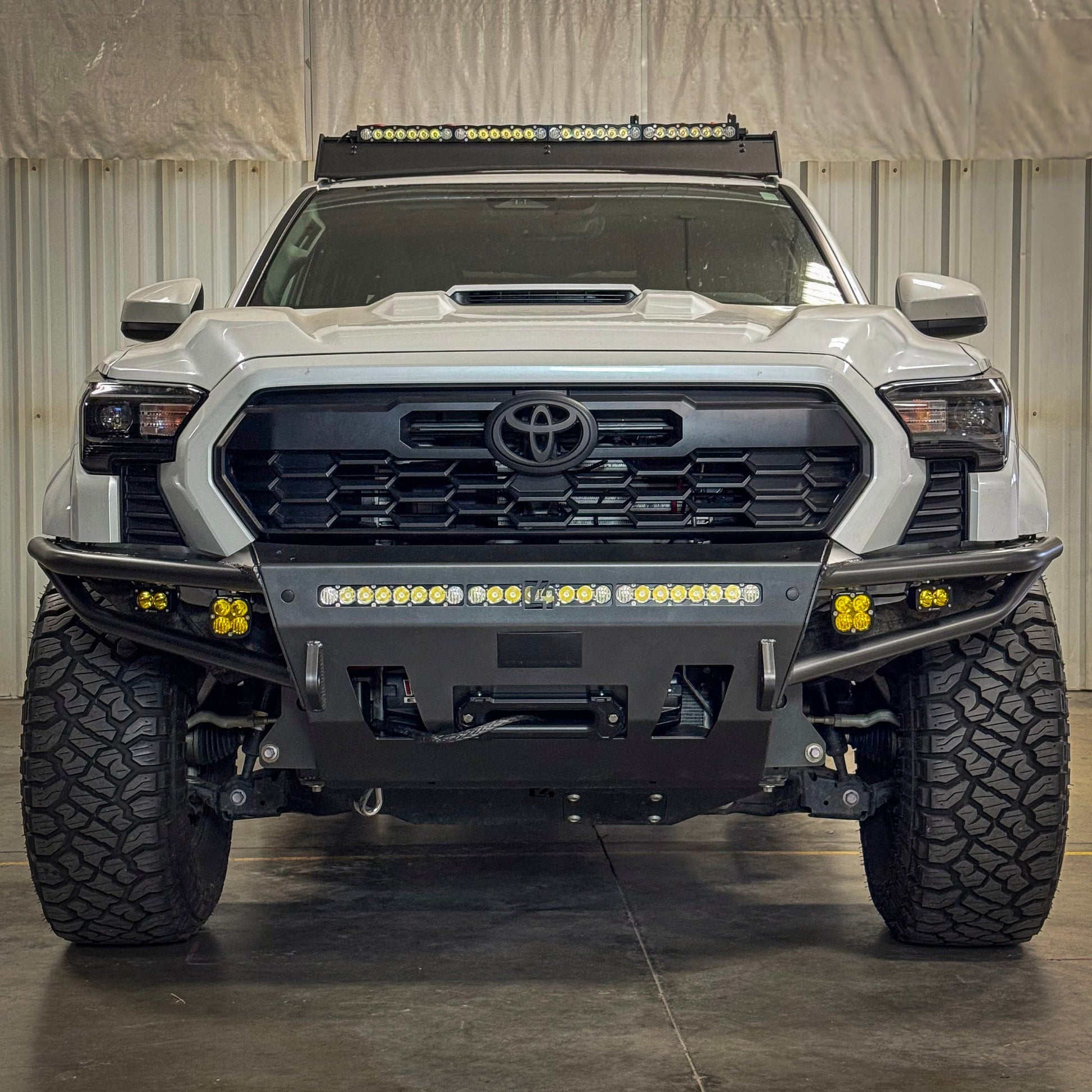

  • 107 lbs without bull bar, 115 lbs with low bull bar, 123 lbs with mid-height bull bar with tube gussets.
  • All bull bar variants are compatible with Toyota Safety Sense and parking sensors. Be aware that some vehicles will randomly require a professional TSS system recalibration after bumper install.
  • SHIPS BARE STEEL, powder coat finish not available. Product will need to be painted or powder coated to prevent rusting.
  • Includes Washer Tank Skid and winch controller relocation kit.
  • TRD Pro and TRD Off-Road models do not require additional mini-skid panel.
  • This product ships Ground
