Carli Suspension 2017-2022 Ford Super Duty Pintop System 3.5" Lift
Diesel
$7,517.00 CAD
Skip to product information
Carli Suspension 2017-2022 Ford Super Duty Pintop System 3.5" Lift
$7,517.00 CAD
Product Details
Carli Suspension 2017-2022 Ford Super Duty Pintop System 3.5" Lift
The Pintop level height system is designed to be the do it all jack of trades for 17+ Super Duty trucks. Need to tow a trailer, commute to work and handle heavy off road driving with one suspension system? This is it.
The Pintop 2.5 kit boasts 2.5″ Remote Reservoir King Shocks designed and tuned by Carli Suspension. This kit offers substantial on-road and off-road performance improvement. Customers can expect more control and bottom-out resistance than the Backcountry, but still have excellent on road ride. A “Base Kit” must be accompanied by a Sway Bar option to form a complete system, but everything else is an optional add on to improve ride and handling.
For the best ride, we recommend adding the Carli torsion sway bar and full replacement rear leaf packs. Both are a massive upgrade on and of road, and address key weak points of the factory parts.
The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.
If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package and If your truck has a block shorter than 3" tall.

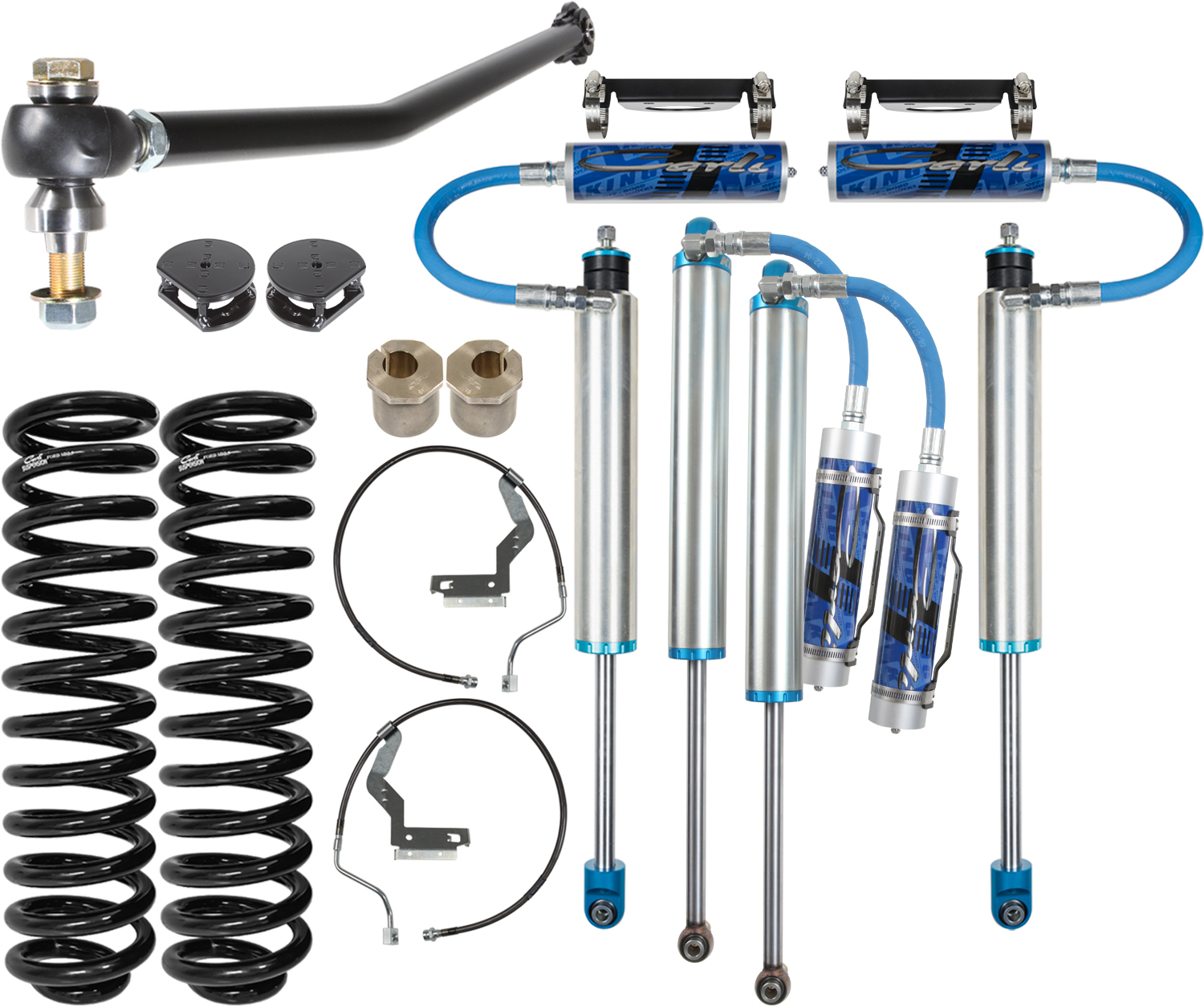

- Front Leveling Coils
- Carli Custom Tuned KING 2.5″ Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts
- Front Brake Lines
- 2° Caster Shims
- High Clearance Bump Stop Drops, Front
- Track Bar
- 3.5″ Lift – 2020-2023 F250/350 4×4 Diesel, Base Kit, 2.5″ Lift – 2017-2019 F250/350 4×4 Diesel, Base Kit, 3.0″ Lift – 2020-2023 F250/350 4×4 GAS, Base Kit, 2.5″ Lift – 2017-2019 F250/350 4×4 GAS, Base Kit
