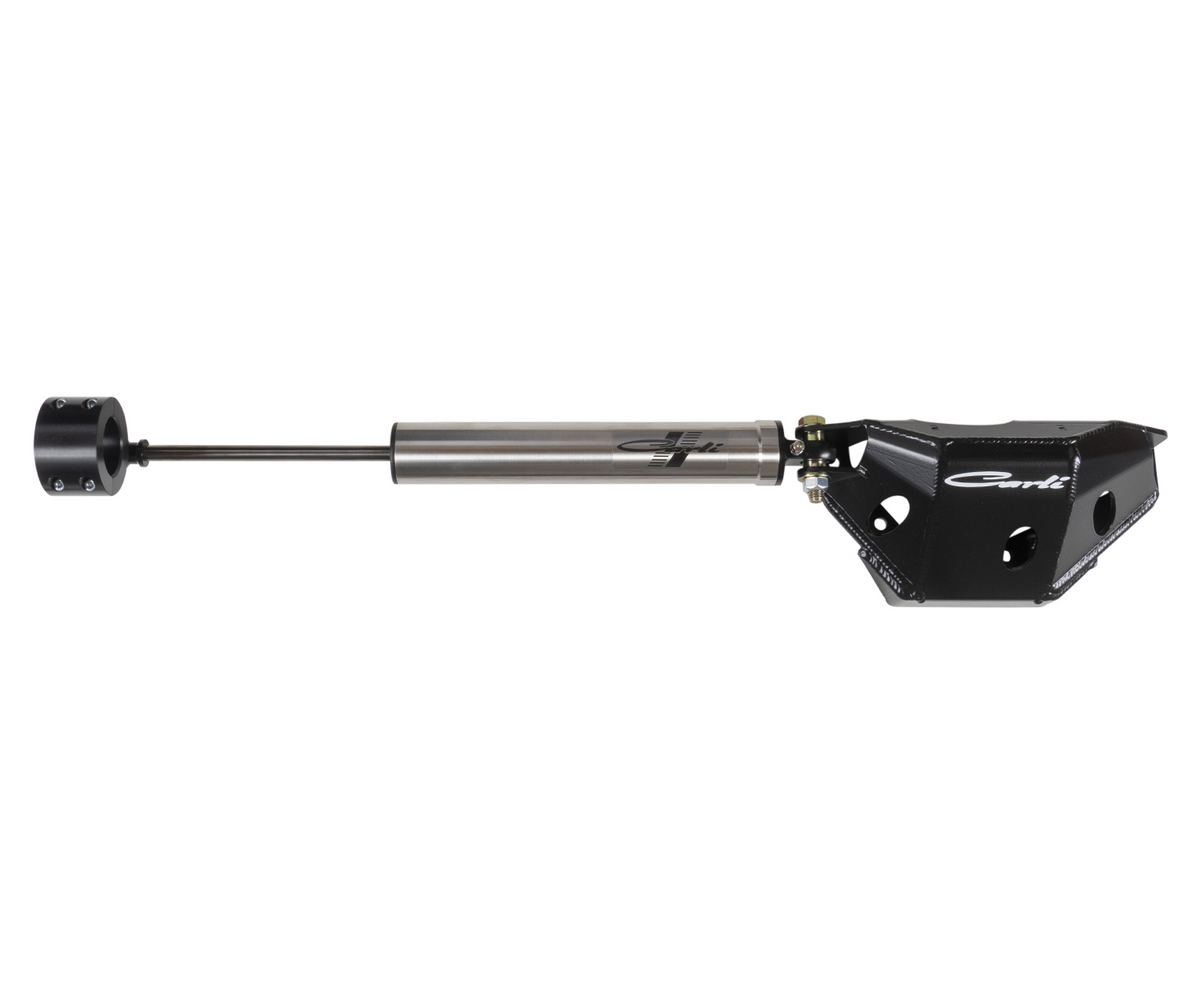

Carli Suspension 2005-2022 Ford Super Duty Low Mount Steering Stabilizer

Carli Suspension 2005-2022 Ford Super Duty Low Mount Steering Stabilizer

Carli suspension started from the ground up to create the best steering stabilizers on the market for the Ford platform, and the low mount is part of that endeavor. Eliminate road feedback into the steering, and improve drivability on your Ford.

Minimizing resonation from encountered road obstacles into the front end parts is KEY to combating front end issues like death wobble. Carli has always offered a high mount stabilizer to combat steering wheel feedback in these trucks. The stainless steel design is far superior to the factory unit boasting a custom valve profile improving control of larger aftermarket wheel and tire combinations, offered adjustability to combat right-hand tire pull and is fully rebuildable all while bolting into the factory location ensuring it’s not susceptible to trail damage like many aftermarket stabilizer units are that mount in front of lower steering linkage.

So why the low-mount? 2 Stabilizers is better than one, simply put. This is a general statement – sure, but it applies when looking at a Carli product. The high mount braces the Drag link (upper steering linkage bar connecting the passenger side wheel to the pitman arm) close to the pitman arm, itself. The wheels/tires are pretty far from the point of stabilization. Think about it as though you’re trying to control someone’s hand movements by holding their bicep.

With a good enough shock and enough valving, this is doable but adding a second stabilizer to the tie-rod (steering bar connecting Driver and Passenger knuckles) eases the load on the upper stabilizer while providing damping at the mid-point between the two tires further from the steering gear itself. The Low-mount steering stabilizer would actually provide a better feel than the high mount if you’re only going to run ONE stabilizer. Also, this is not limited to lifted/leveled vehicles and can be run on ANY Super Duty with a stock tie-rod.

If both stabilizers are run, one stabilizer per steering bar (Drag link and Tie-rod) means there’s no flop/rocking in the steering, the steering dampers work in every direction (The lower stabilzer dampens left and right, upper stabilizer dampens left/right AND angular load into the gearbox). This optimizes control of larger aftermarket tires while minimizing steering wheel feedback (rocking of the wheel when you encounter a bump). Lastly and perhaps most important for those seeking adjustment, the stabilizers run a true opposing setup; they effectively push against each other. The High mount pushes toward the driver’s side when pressurized and low mount pushes toward the passenger allowing infinite adjustability for whatever radial pull one may encounter.

• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure

• Combines with High-Mount Stabilizer for Opposing Setup

• Optimized for Carli 2.5″-5.5″ Systems

• Fitment: 2005-22 Ford F250/350 4×4

• ONLY Compatible with Carli Diff Cover WITH integrated Stabilizer Mount.
